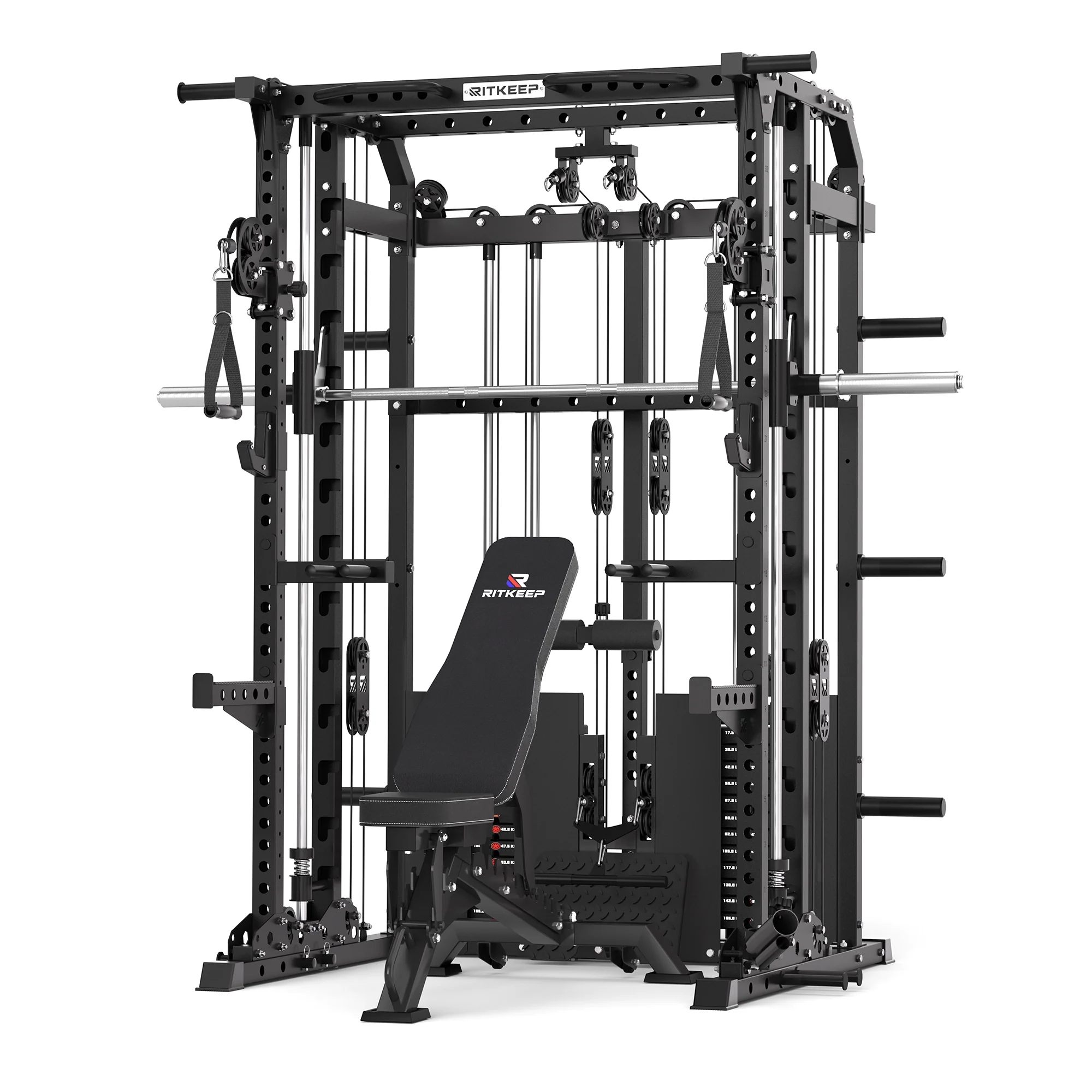

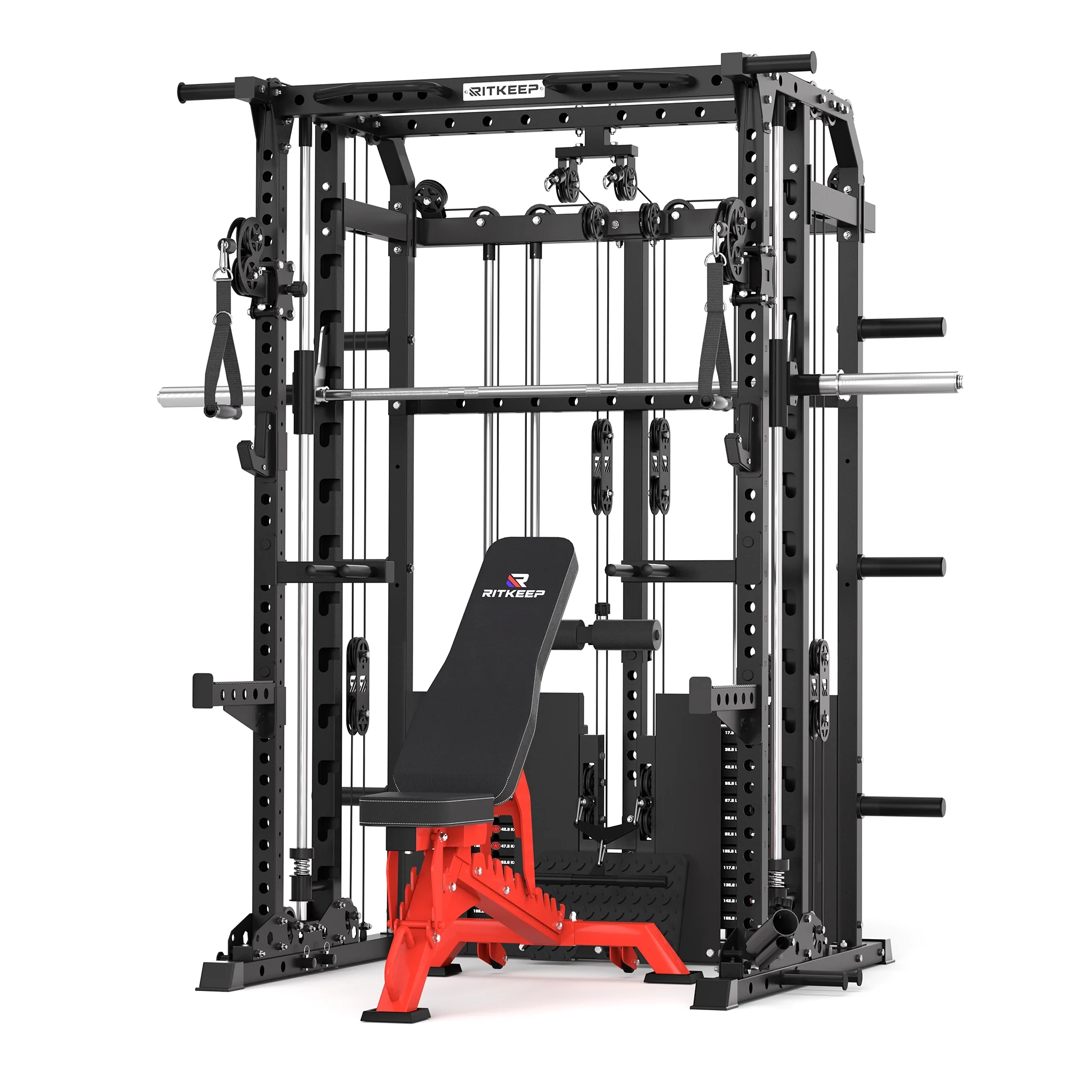

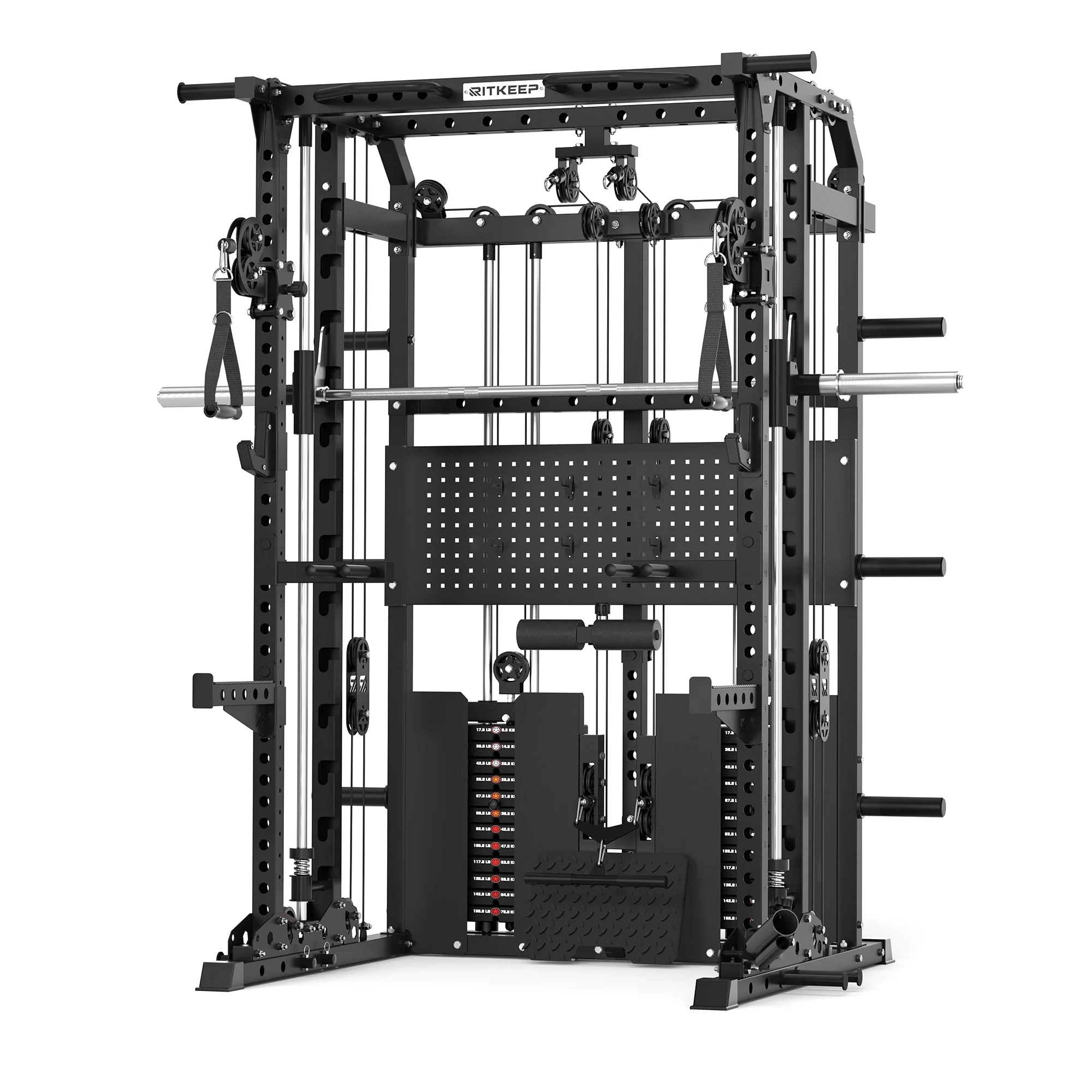

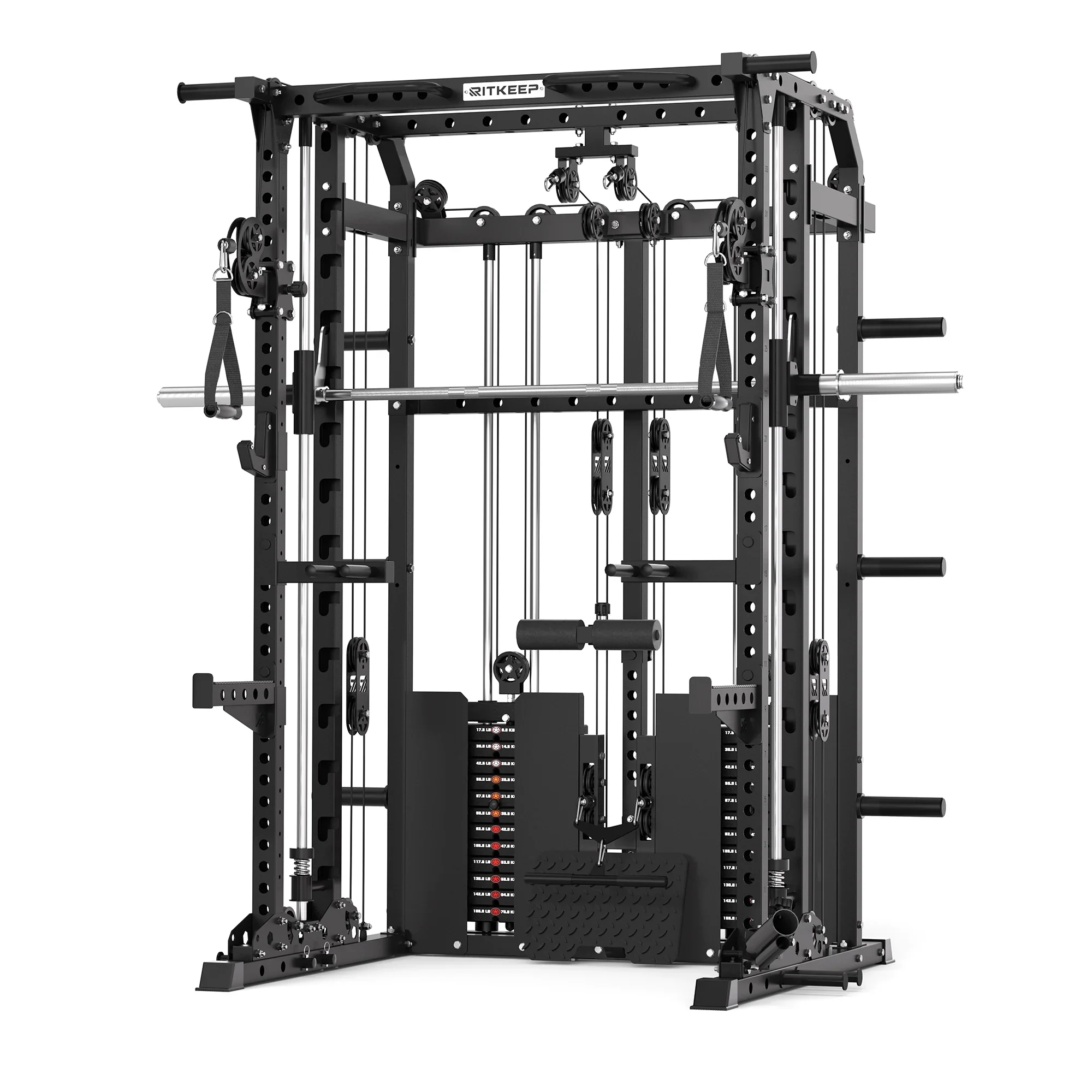

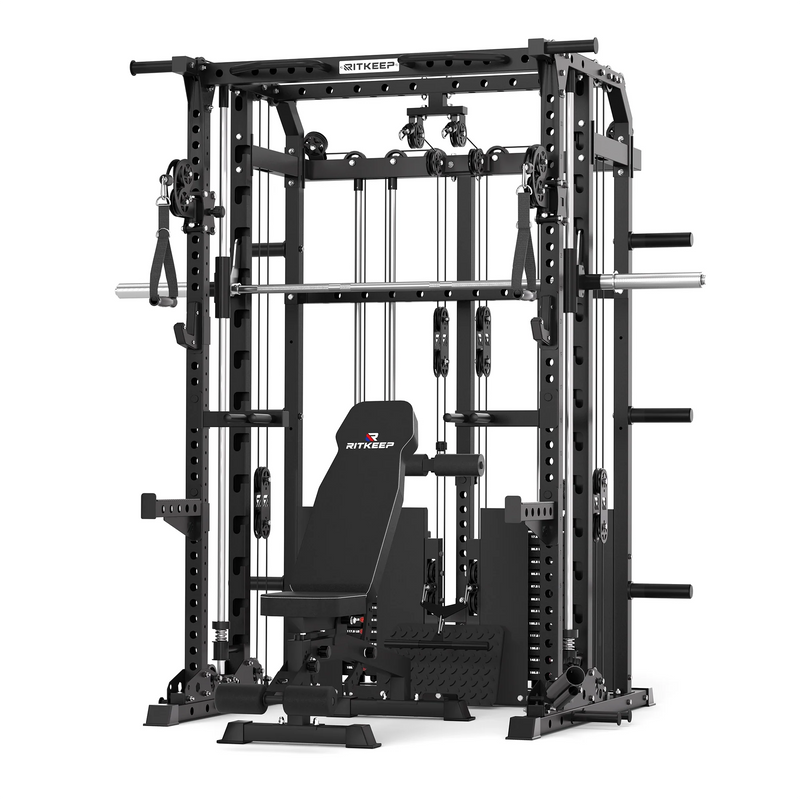

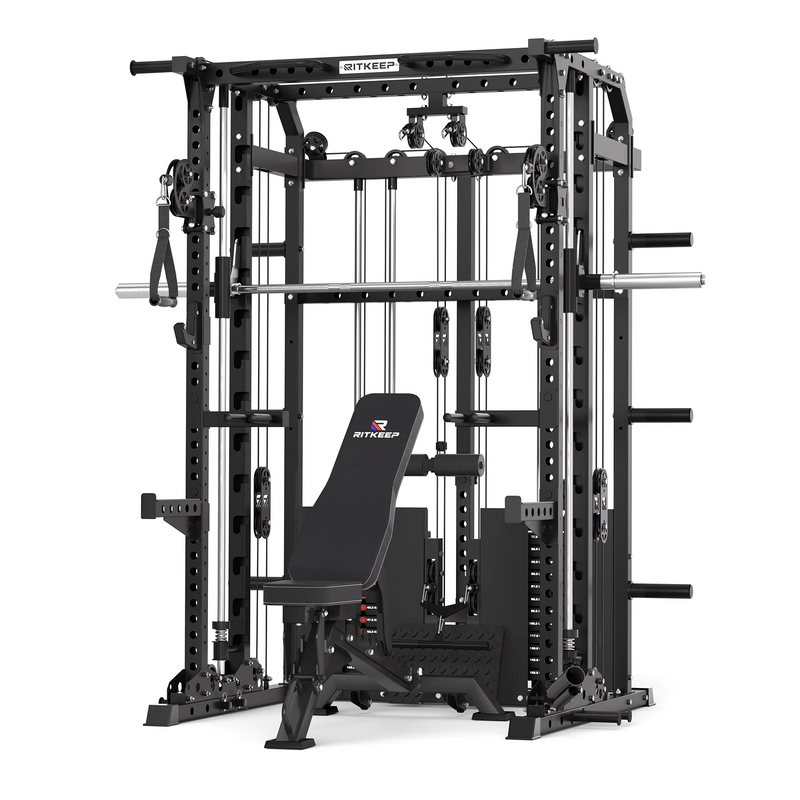

ANVIL S1 Unilateral and Bilateral Training Smith Machine with Rear Dual Weight Stack
- Dual 70 KG Weight Stacks
- Built-In Pulldown & Low-Row System
- Adjustable Leg Holder & Large Footplate
- 33-Level Dual Independent Pulley System
- Rear Stacks Design Maximize Training Space
- Standard / None - £1,749.99
- Standard / RAB 3000 (Black & Red) +£189 - £1,938.99
- Standard / RAB 3000 (Black) +£189 - £1,938.99
- Standard / RAB 2000 +£159 - £1,908.99
- Pro (Pegboard) +£110 / None - £1,859.99
- Pro (Pegboard) +£110 / RAB 3000 (Black & Red) +£189 - £2,048.99
- Pro (Pegboard) +£110 / RAB 3000 (Black) +£189 - £2,048.99
- Pro (Pegboard) +£110 / RAB 2000 +£159 - £2,018.99
DESCRIPTION

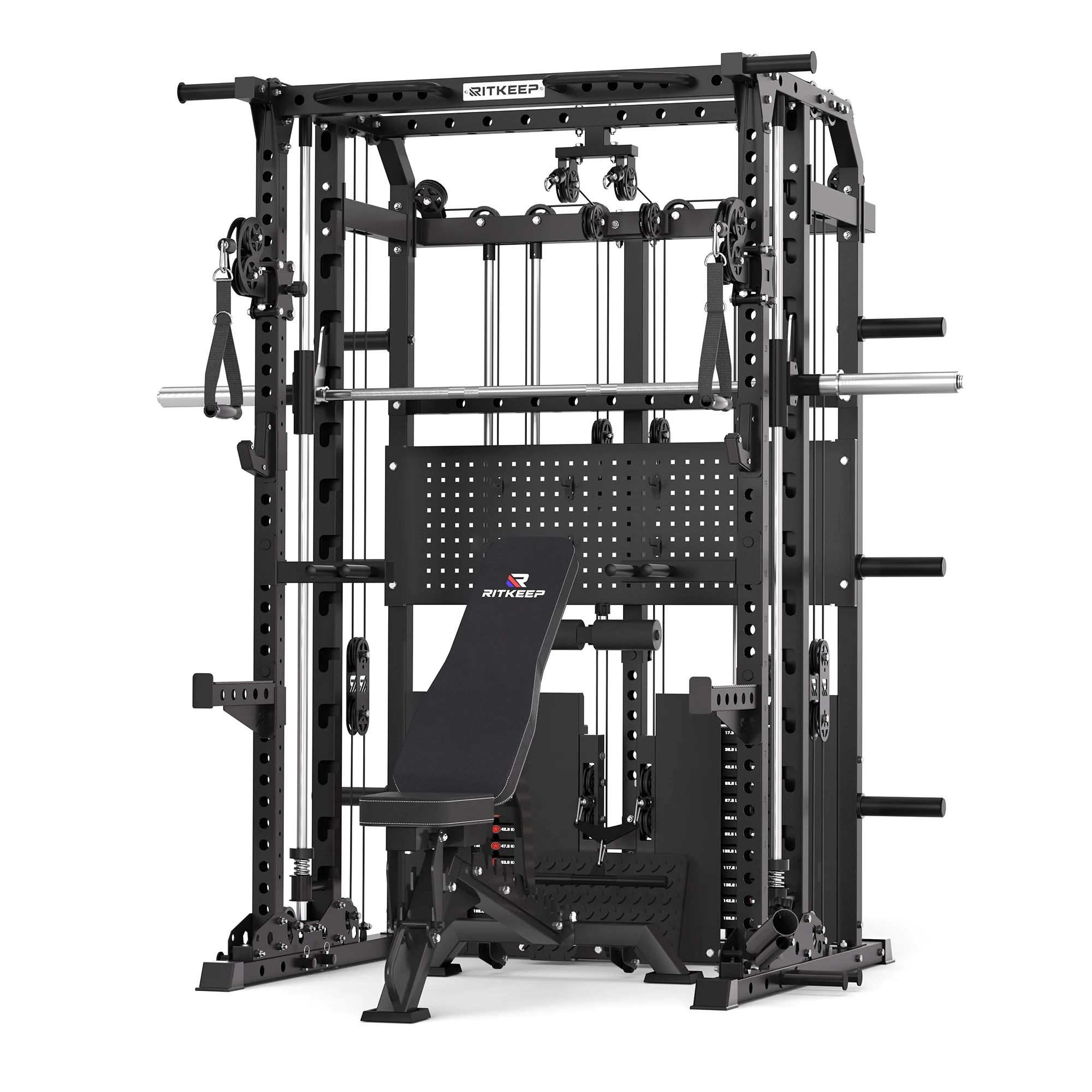

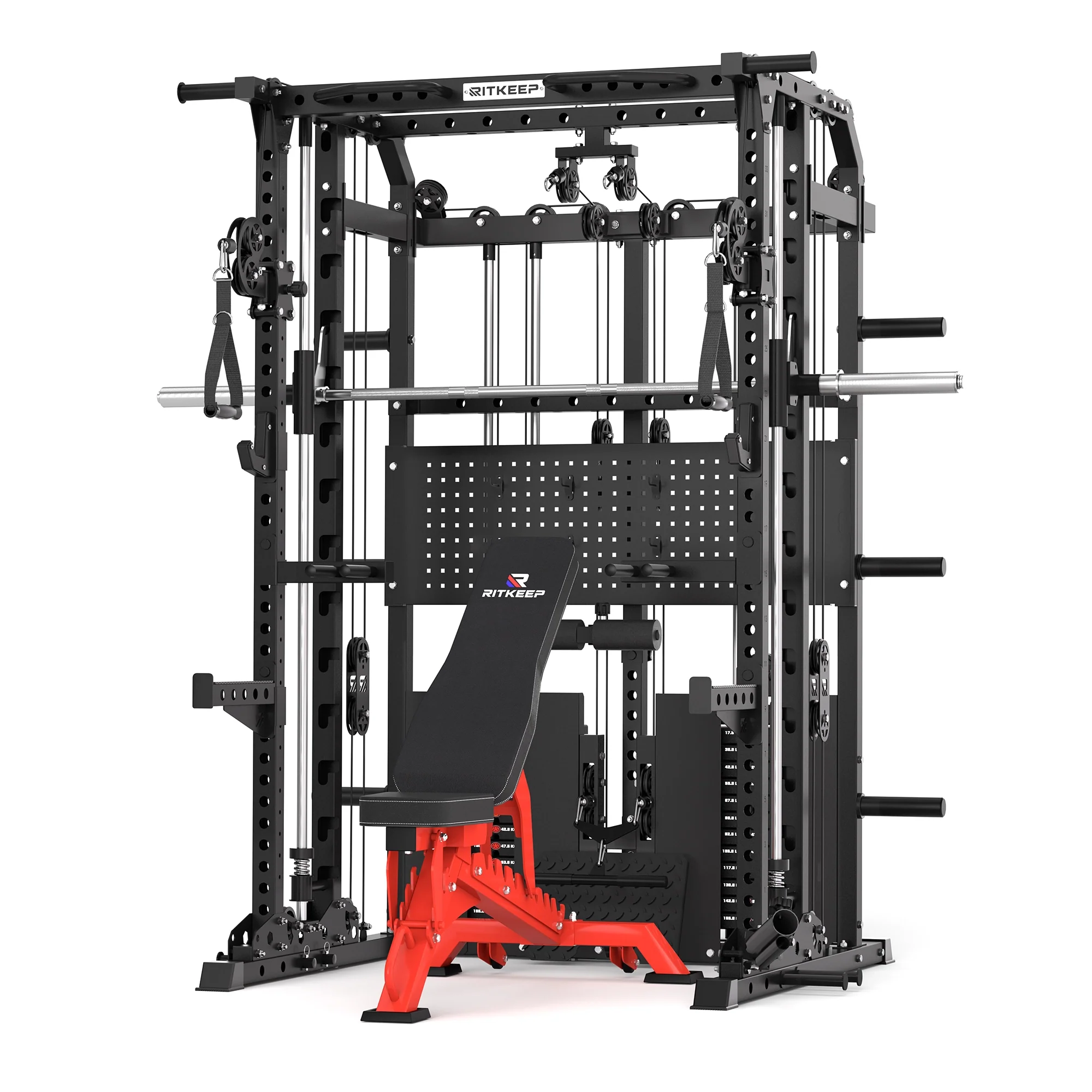

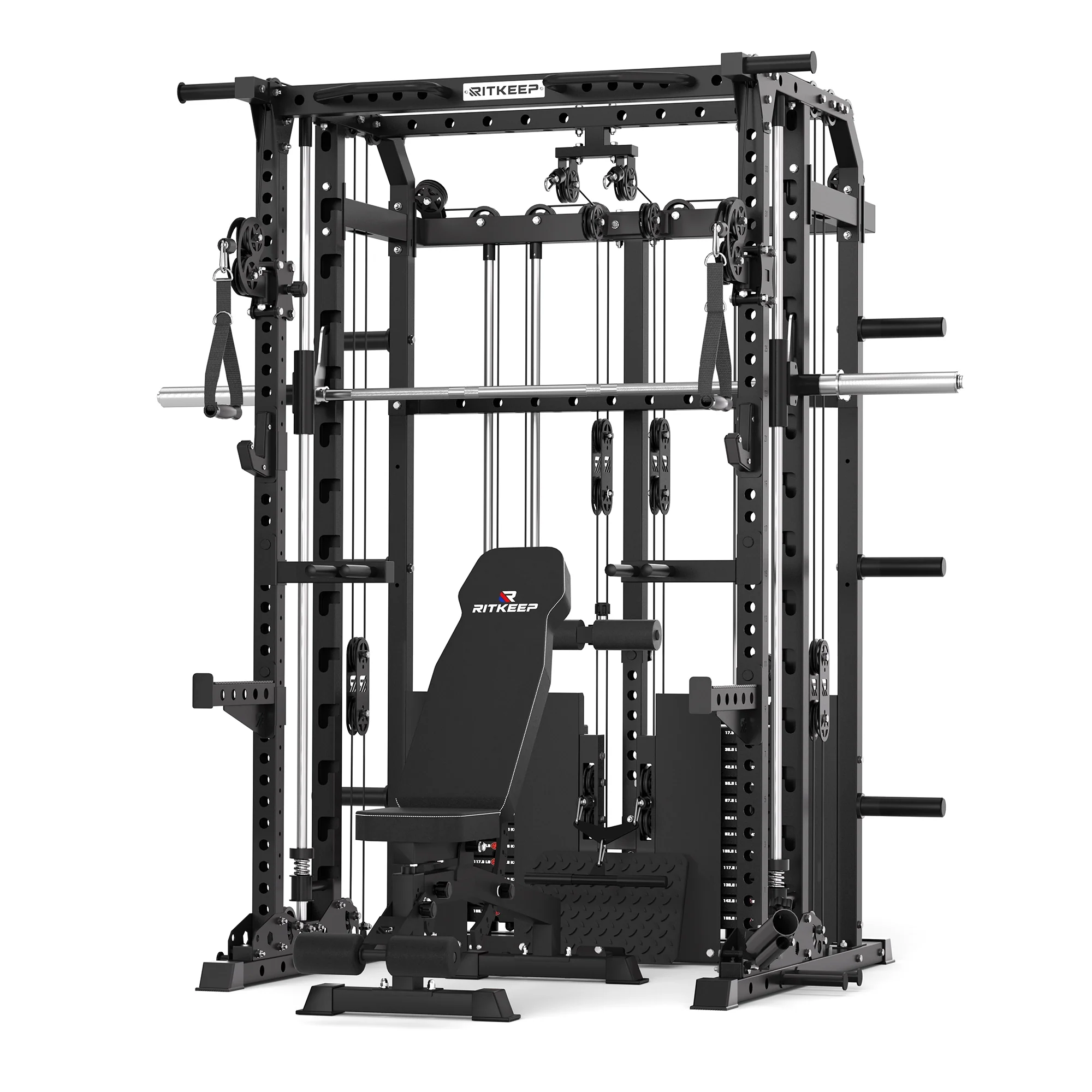

The ANVIL S1 is a next-generation all-in-one Smith machine, designed for efficient full-body training in a compact setup. At its core is an innovative Dual-Drive Pulley System, powered by dual rear weight stacks, delivering smooth, balanced resistance and effectively targeting lat and row movements for optimized back training.
This versatile system combines a Smith machine, functional trainer, power rack, pull-up station, and low row in one space-saving unit, allowing seamless transitions between strength and functional workouts.
Built from durable 14-gauge steel, it offers excellent stability and supports up to 1,000 KG, while the powder-coated finish resists wear and corrosion for long-term performance.
Dual-Drive Pulley System
- Dual selectorized weight stacks (70kg per side, 140kg total) with a 2:1 ratio for smooth, controlled reps.
- Support both unilateral and bilateral training, allowing each side to be adjusted separately for greater flexibility and efficiency.
- Built-in lat pulldown and low row system requires no setup or carabiner changes, allowing you to move seamlessly between exercises.
- Angled cable pulley pivot design and elevated low row position create a better lat engagement and natural movement without interference.
Dual Independent Cable Pulley System
- Dual independent pulley systems with separately adjustable weight stacks allow two users to train at the same time with different weights.
- 2:1 ratio provides lighter resistance, smoother control, and longer cable travel for more versatile training.

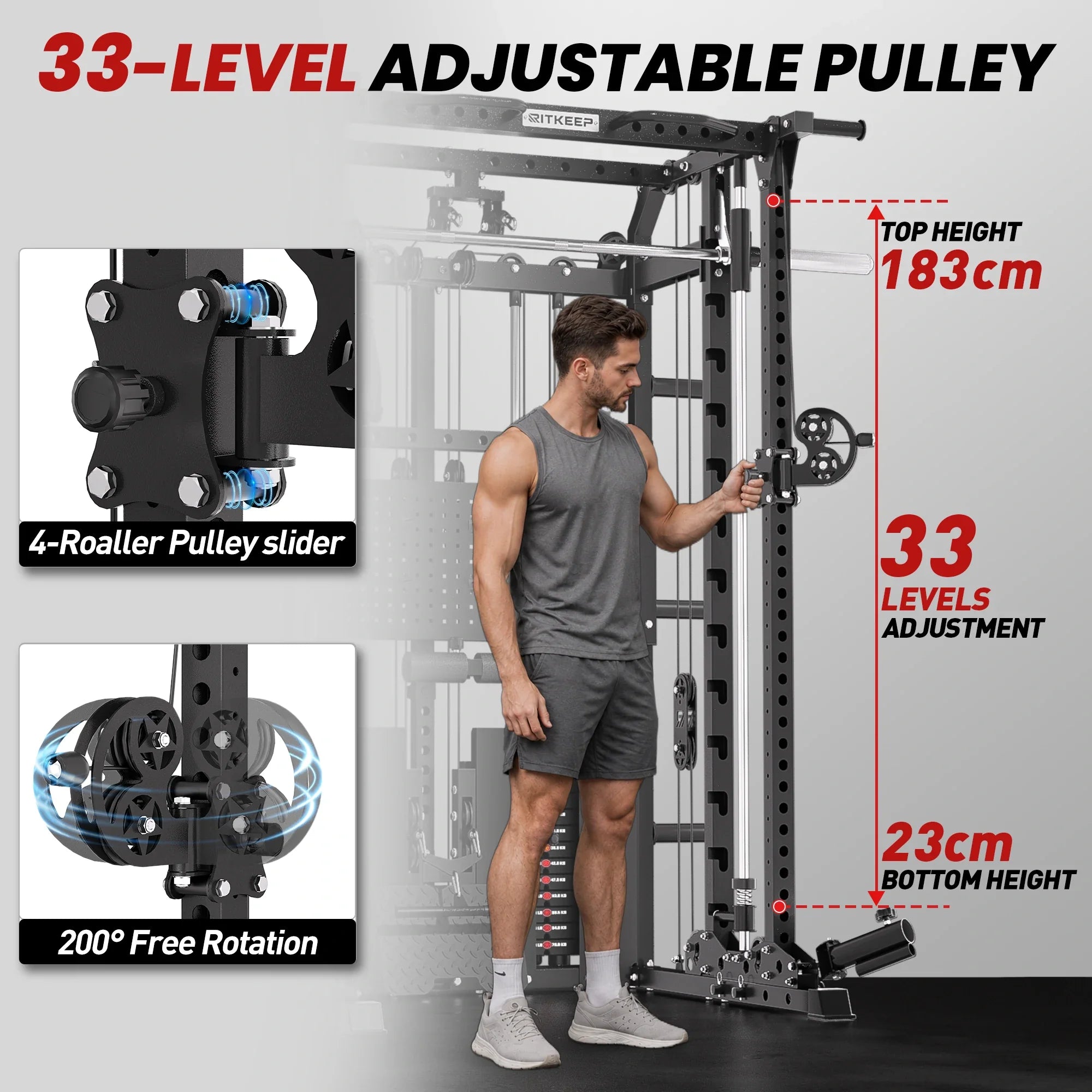

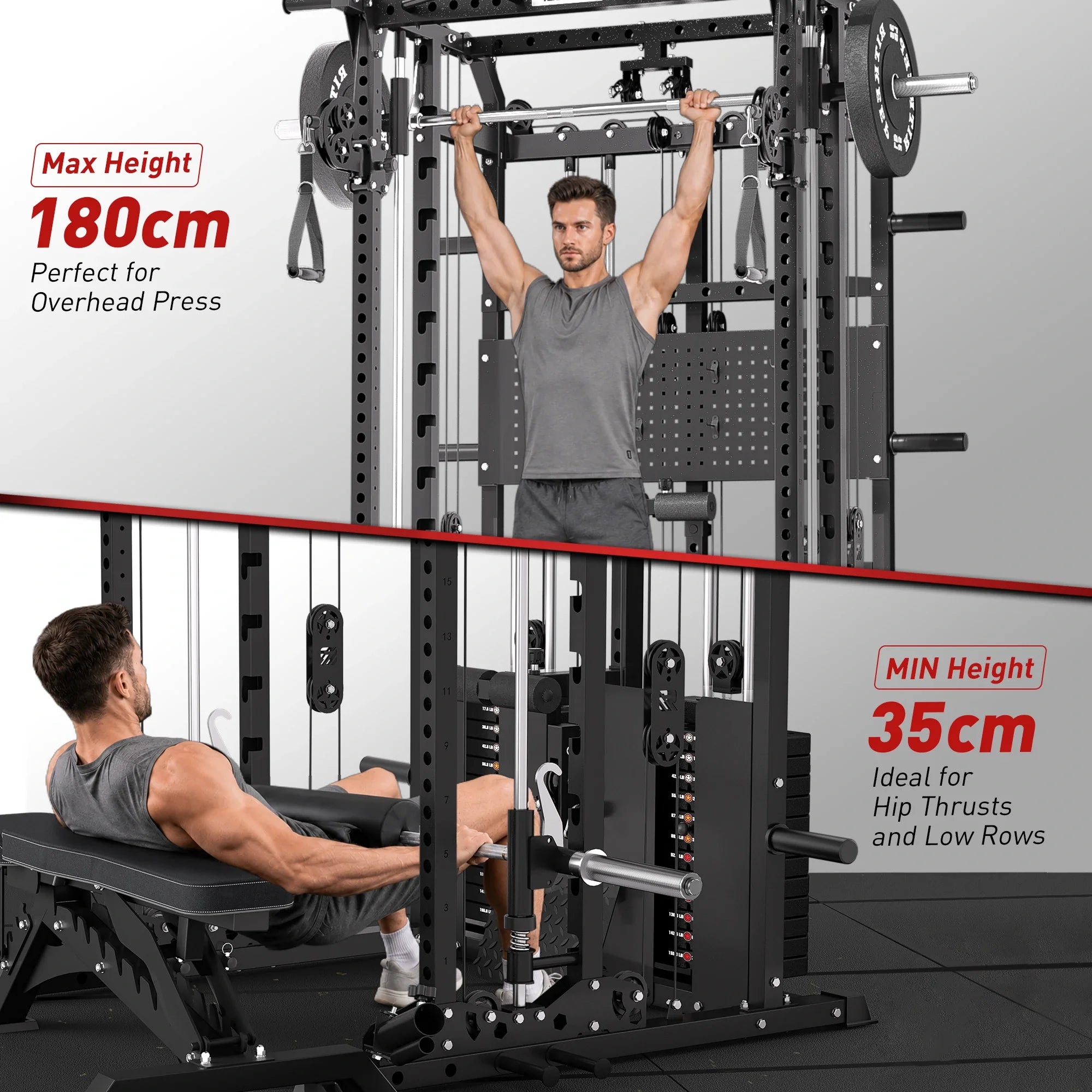

- 33 adjustable height positions ensure the perfect fit for any user or exercise, providing precise and versatile training.
- The roller cable trolley enables smooth one-handed adjustment along the uprights, allowing quick and effortless exercise changes.
- 200° rotating pulleys support multi-directional training and flexible space use, allowing multiple users to train without crowding.
Specifications
- Machine Weight: 340 kg (including Dual 70 kg Weight Stacks)
- Maximum Capacity Smith Machine Bar: 200 KG
- Maximum Loading Capacity: 1,000 KG
- Cage Dimensions: 115 cm (D) x 203 cm (W) x 212 cm (H)
Additional Information
- Please note: This item requires assembly.
- Disclaimer: Weight plates are not included. The Smith barbell and weight stacks are included.
SPECIFICATION

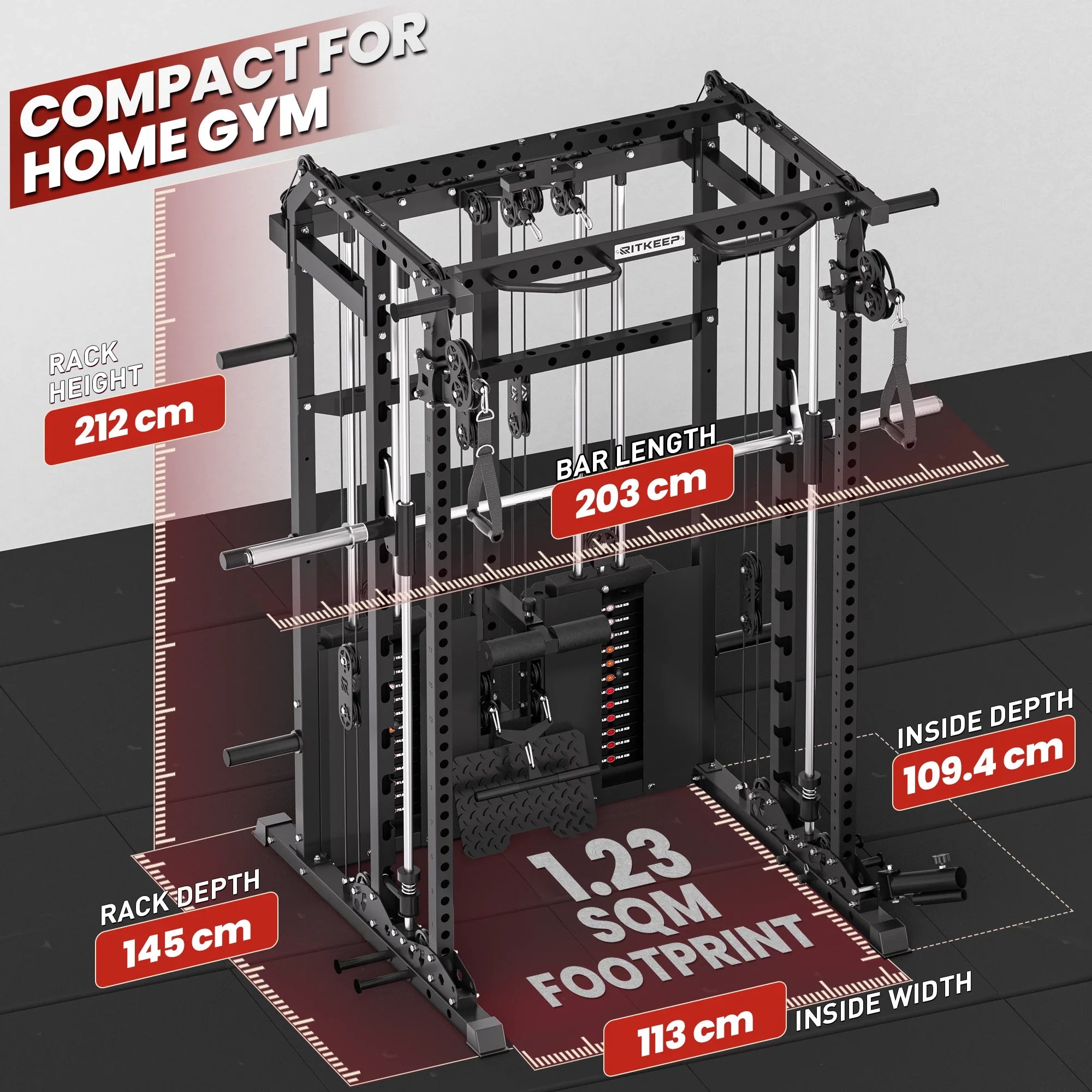

Dimensions & Footprint
| Rack Weight | 340 kg |
| Rack Height | 212 cm |
| Rack Width (Including Smith Bar) | 203 cm |
| Rack Depth | 145 cm |
| Inside Width | 113 cm |
| Inside Depth | 109.4 cm |
| Smith Bar Weight | 15 kg |
| Smith Bar Length | 203 cm |

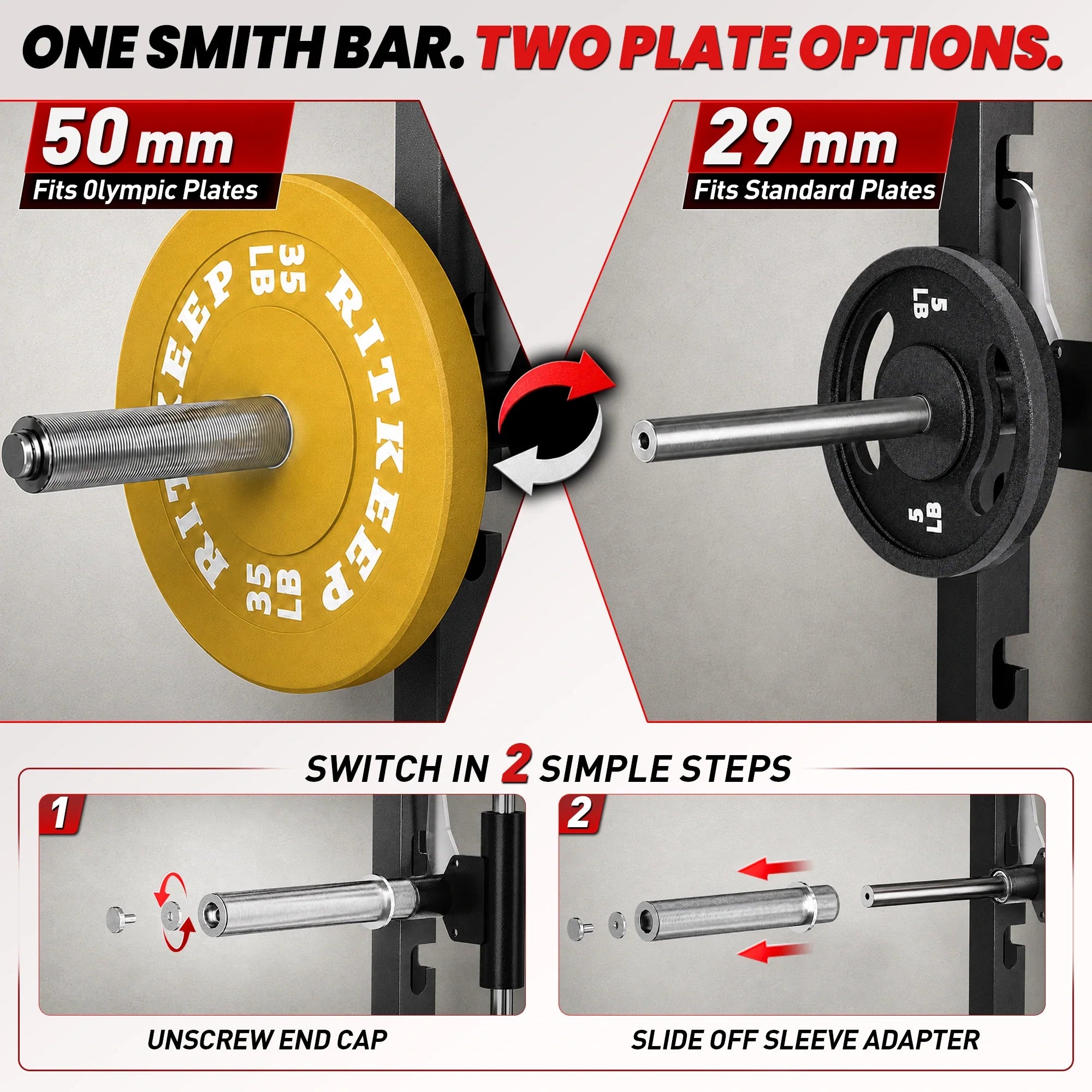

| Smith Bar Sleeve Length | 29 cm |
Cable Pulley
| Weight Stack | 2 × 70 kg Stacks |
| Pulley Ratio | 2:1 |
| Pulleys | Nylon |
| Cable | 4-Layer Encased Steel |
| Cable Pulley Rotation | 200° |
| Cable Head Rotation | 360° |
| Vertical Adjustment | 33 Levels |

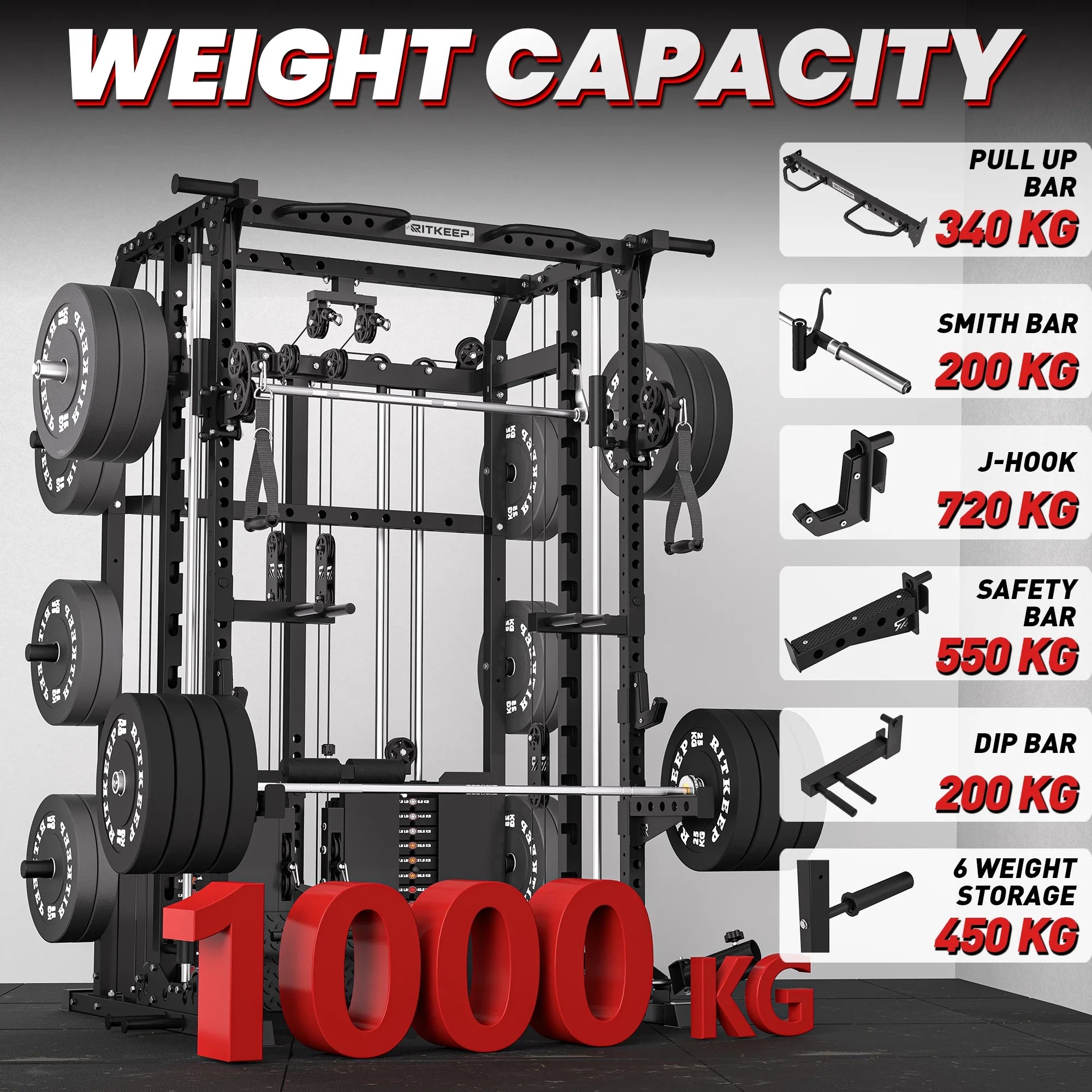

Max Load Capacity
| Machine | 1000 kg |
| Cable Pulley | 680 kg |
| J-Hooks | 720 kg |
| Safety Spotter Arms | 550 kg |
| Pull-Up Bar | 340 kg |
| Dip Station | 200 kg |
| Lat Pulldown Bar | 150 kg |
| Straight Bar | 120 kg |
| Landmine & T-Bar | 270 kg |
Frame
| Steel Type | 14-Gauge Steel |
| Square Tube | 50 × 50 mm |
| Metal Thickness | 2 mm |
| Coating | Powder Coated |
WARRANTY
Warranty Period
Ritkeep provides a comprehensive warranty coverage for a duration from the date of purchase. During this period, we guarantee that your product will be free from any defects in material, functionality, and workmanship. The warranty is exclusively applicable to the original purchaser of the product, as long as you remain the owner. It is important to remember that the warranty is non-transferable.
Construction
FOR ALL WARRANTIES * Warranty may be voided for any product which has been damaged due to negligent or faulty use, alteration, maintenance, storage or handling by the user. Any specific issues regarding a RitKeep product with which a customer is not satisfied will be reviewed on a case-by-case basis. Please note that our warranty does not apply to product or barbell service and maintenance. We recommend you properly service and maintain your product for life long product longevity.
** Warranty against bending does not cover any bar which has been damaged due to negligent or faulty use, alteration, maintenance, storage or handling by the user. Negligent or faulty use includes abusive dropping of the bar (i.e., dropping the bar on a box, bench, spotter arms or pins in a power rack, excessive dropping with insufficient or damaged bumpers, excessive dropping with iron plates, excessive dropping on concrete or similar surfaces, and similar usage). Any specific issues regarding a RitKeep product with which a customer is not satisfied will be reviewed on a case-by-case basis.
| Material | Warranty |
|---|---|
| Frames | 2 Year Warranty |
|
Pull-Down Bar, Dip Bar, Landmine, T-bar, Safety Arm, D-Shape Handle, J-Hooks |
1 Year Warranty |
| Wheels, Cables | 90 Day Warranty |
| Dumbbells | 2 Year Warranty |
| Weight Plate | 2 Year Warranty |
| Weight Bench | 1 Year Warranty |

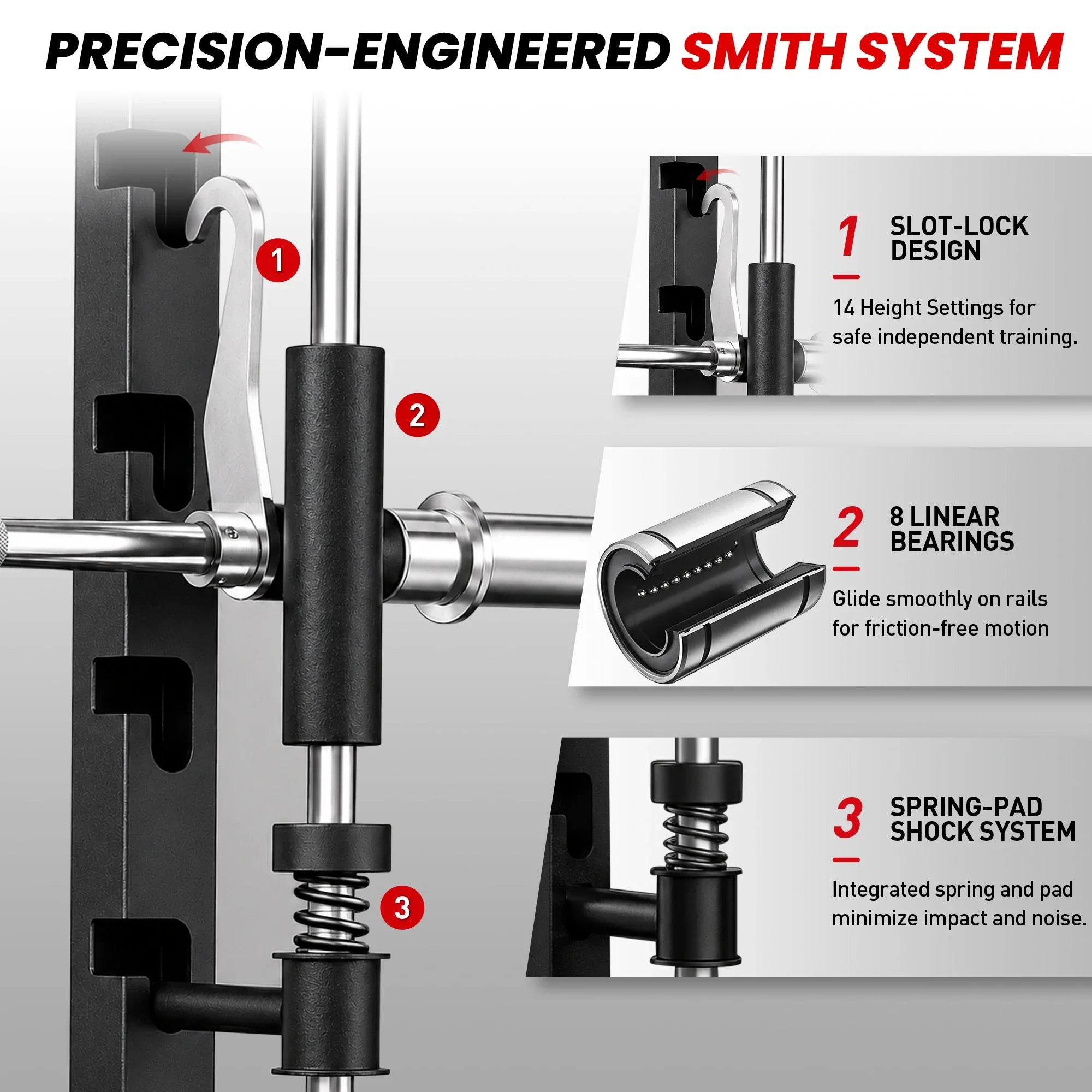

Precision-Engineered Smith System

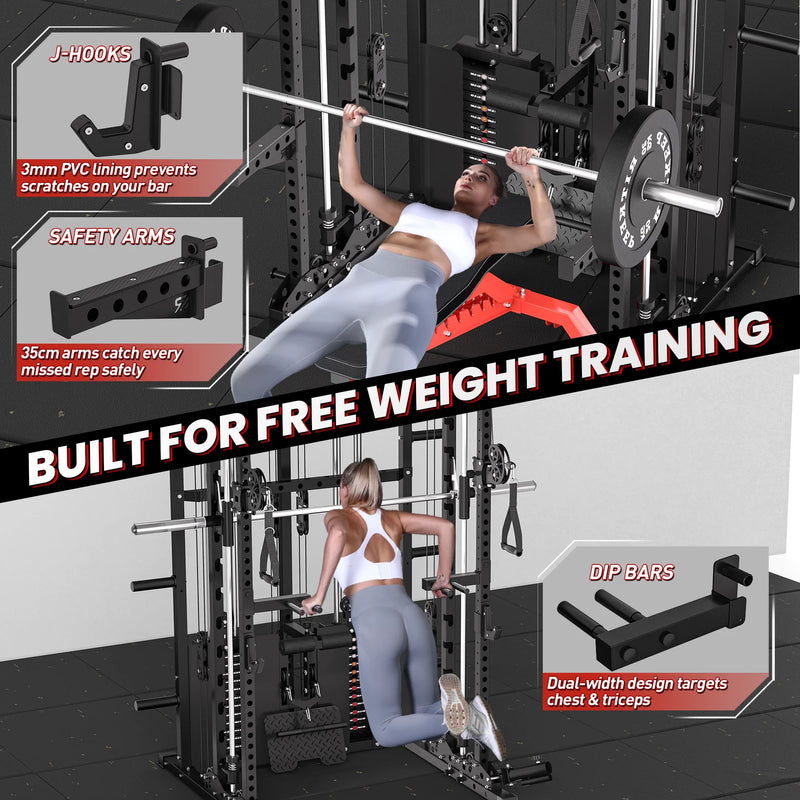

Designed for safer and smoother lifts, the ANVIL S1 Smith System combines a secure slot hook design, built-in spring protection, and solid steel guide rails. The precision-guided system ensures stable bar movement with reduced friction, while the slotted uprights provide reliable bar engagement for safer training during every lift.
A True Lat Pulldown Experience

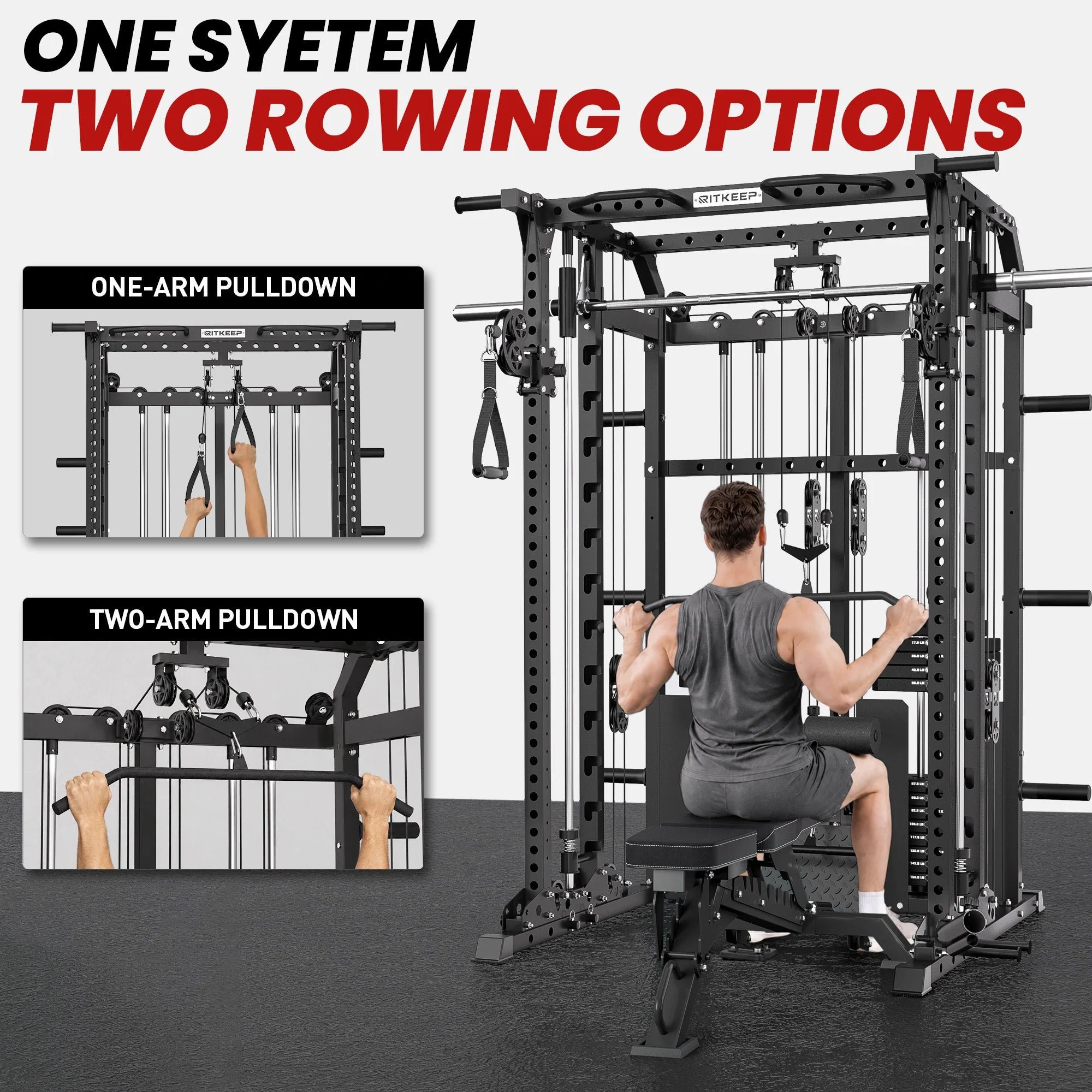

The Anvil S1 features a rear dual weight stack system with a total capacity of 140 KG (70 KG per side), allowing you to perform lat pulldowns directly inside the rack. Switch between one-arm and two-arm lat pulldowns for controlled back training with improved balance, comfort, and muscle engagement.

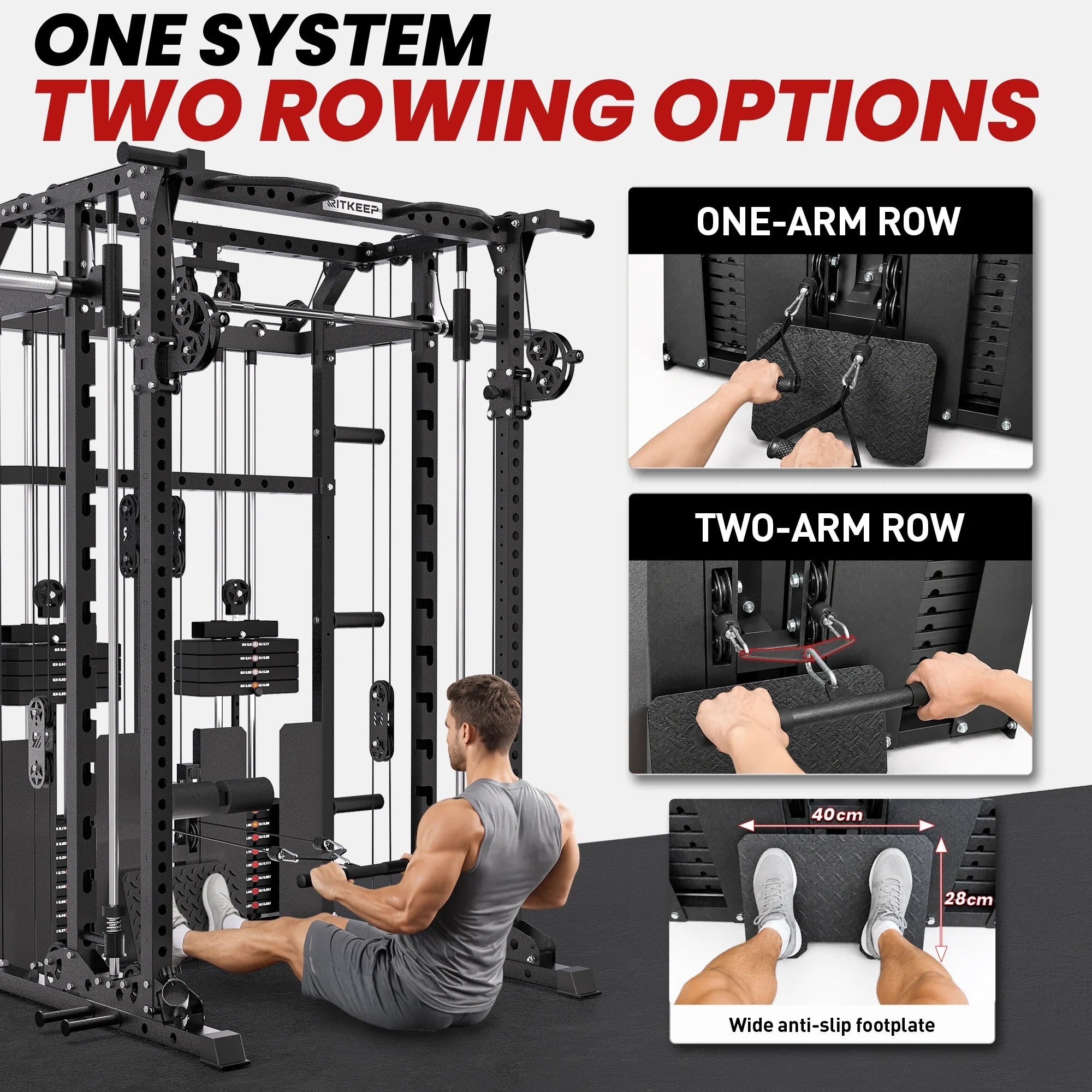

A Better Way To Row
The Anvil S1 supports both one-arm and two-arm low rows, offering versatile back training options with improved control and stability. The oversized 51 cm × 44 cm textured footplate provides a secure, slip-resistant foundation, helping you generate stronger pulls and maintain proper positioning throughout every rep.

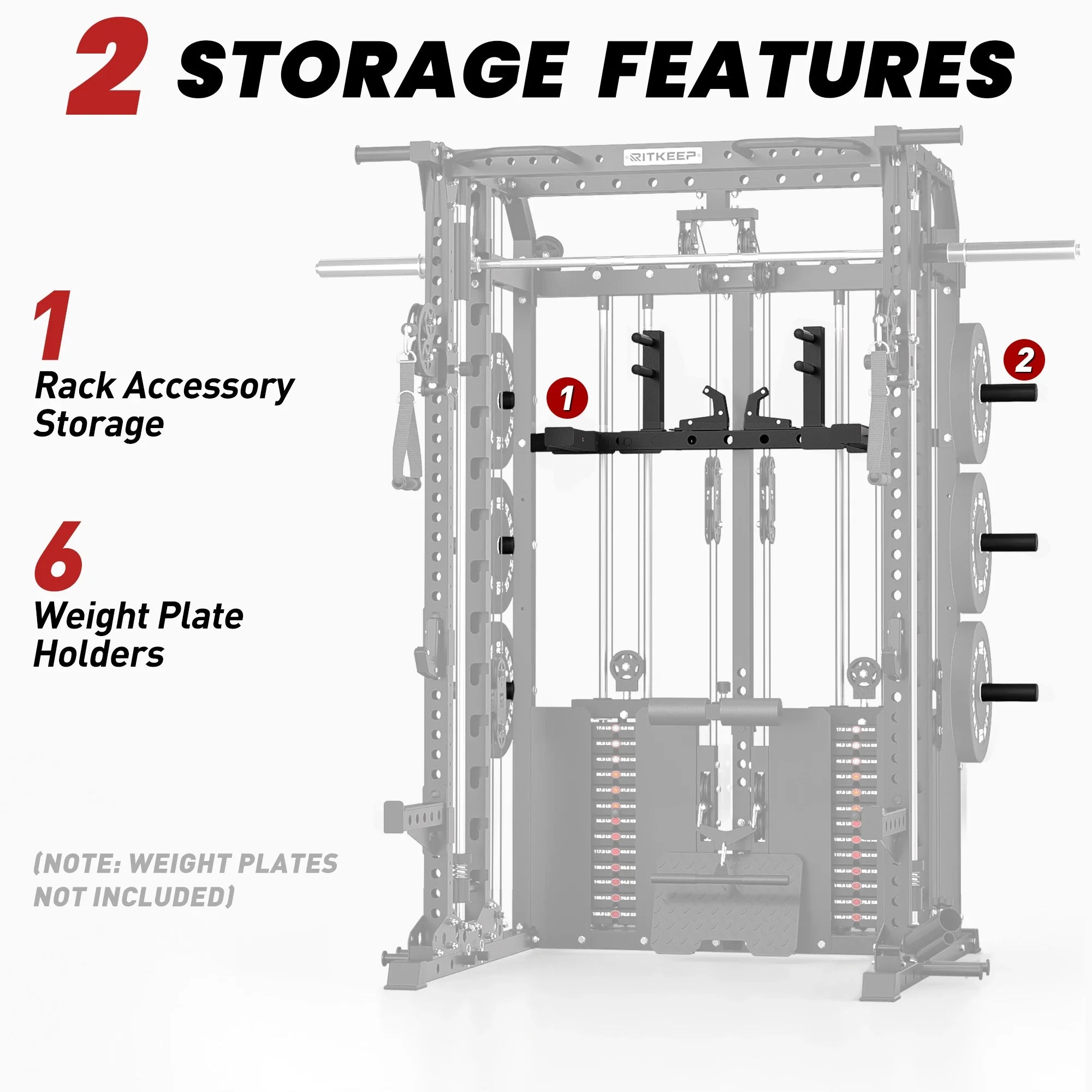

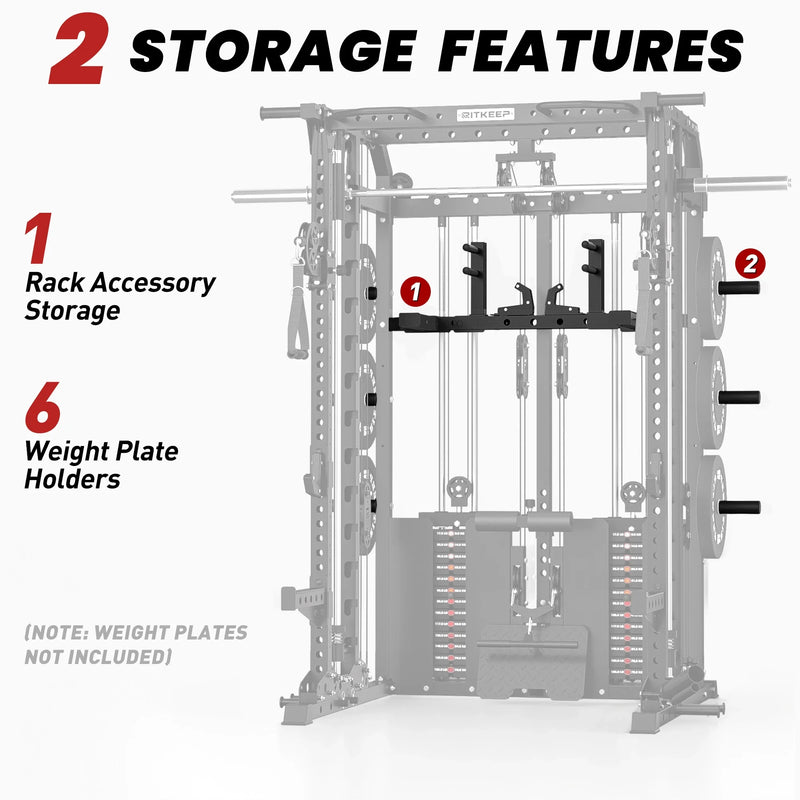

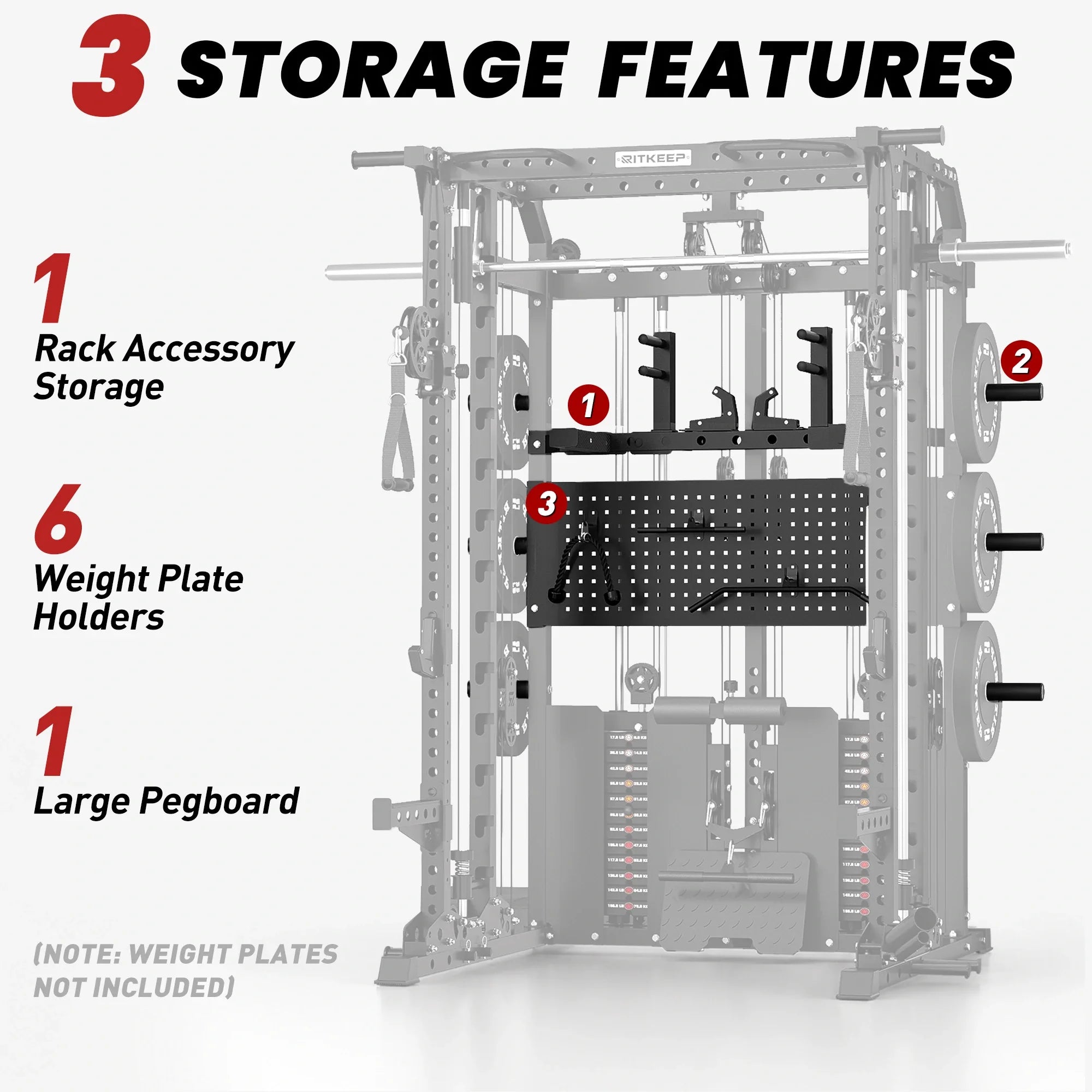

Built-In Storage Solution
A well-designed, integrated storage system keeps your home gym organized, efficient, and clutter-free. Everything stays in one place, helping you maintain a clean, space-efficient, and professional home gym setup.

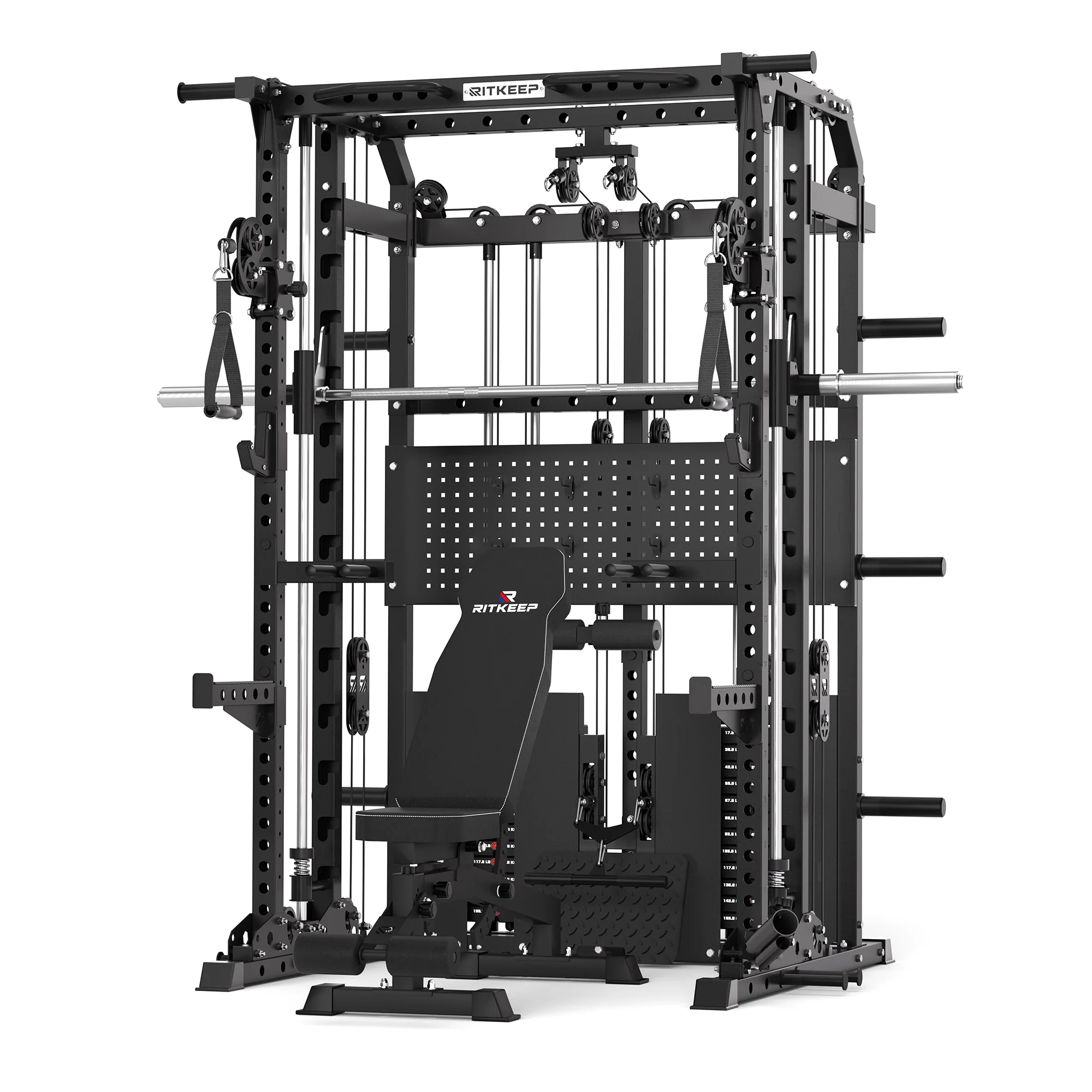

Large Pegboard
Provides flexible, easy-access storage for handles and small attachments, keeping frequently used accessories visible and within reach.
6 Weight Plate Holders
Dedicated plate storage positions allow you to store plates directly on the machine, reducing floor clutter while saving valuable gym space.
Attachment Storage Frame
A reinforced storage frame securely holds bars and specialty attachments, keeping all accessories neatly organized and ready for training.
